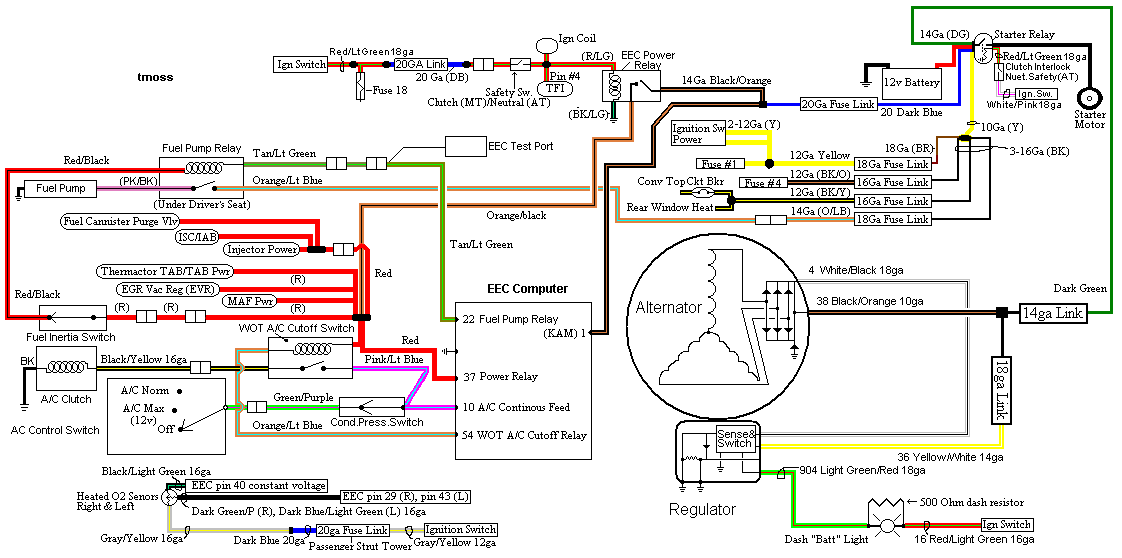

Nhra fuel pump relay wiring diagram. Using the diagram on the fuse box cover locate the fuel pump relay. Wiring diagram furthermore 1993 dodge dakota fuel pump moreover fuel nhra fuel pump relay wiring diagram wiring diagram list. Remove the fuel pump relay from the fuse box. Variety of electric fuel pump relay wiring diagram.

I am a non wiring person i have a bosch relay 0 332 209 150 896. 1ea 30 amp 12 vdc automotive relay 1ea 30 amp 12 vdc circuit breaker 2ea yellow insulated butt connector 2ea yellow ring connector for 10 stud 1ea yellow ring connector for 38 stud 18ft 10ga. On your web site it shows this diagram with 85 going to ground. In the wiring in the fuel pump relay 2.

So use a larger gauge wire for lower voltage drop. Basic safe electric fuel pump wiring diagram this is the basic wiring diagram for safe electric fuel pump wiring. Also in a crash your pump can continue to run feeding a fire if you dont have a way to stop it. 1998 tahoe fuse box location top engine fuse diagram 1998 tahoe fuse box 1998 tahoe fuse box 1 8 speaker jack wiring diagram 2003 malibu cooling system diagram nhra fuel pump relay wiring diagram 97 ford f 150 stereo wiring color diagram kia sephia fuse box marine windshield wiper wiring diagrams 1992 saturn sl fuse box wiring diagram for 6 pole bs switch 1997 chevy silverado wiring.

It states 86 goes to ground. The diagram is color coded per circuit and only a few things may need to be said. How to do it right. Once you open up the fuse box you can use the diagram on the fuse box cover to find the fuse to the fuel pump relay.

Remember to use common sense when working with fuel. Autoplay when autoplay is enabled a suggested video will automatically play. Simply the best built best looking hardest working most affordable fuel pump wiring harness available. Thanks 85 and 86 are the relay coil.

A step by step guide for how to connect the new wiring harness that may be supplied with your new fuel pump. Fuel pump wiring for the red circuit is generally going to carry a much higher current than the relay. How to re wire a fuel pump off a relay. Here is a diagram on how to wire and plumb your pump.

A wiring diagram is a simplified standard photographic depiction of an electrical circuit. Another precept of the variable speed fuel pump is that it eliminates hot fuel from going back to the tank generating air polluting vapors. It shows the elements of the circuit as streamlined shapes and the power as well as signal links in between the gadgets.
