Truth Table Half Adder Logic Diagram

An adder is a digital logic circuit in electronics that performs the operation of additions of two number.

Truth table half adder logic diagram. Titlefull adder truth table logic diagram class. K map for half adder. Thus cout will be an or function of the half adder carry outputs. The circuit of half adder can be designed with the help of basic building blocks of digital electronics realm ie.

So in this way the circuit of a half adder operates. Explain half adder and full adder with truth table an adder is a digital logic circuit in electronics that implements addition of numbers. The first will half adder will be used to add a and b to produce a partial sum. In this article we will discuss both half adder and full adder theory with their truth tables and logic diagram.

Half adder can also be designed with the help of universal gates. In many computers and other types of processors adders are used to calculate addresses similar operations and table indices in the alu and also in other parts of the processors. This is the construction of half adder circuit as we can see two gates are combined and the same input a and b are provided in both gates and we get the sum output across ex or gate and the carry out bit across and gate. They are also found in many types of numeric data processing system.

An adder is a digital circuit that performs addition of numbers. A b and cin which add three input binary digits and generate two binary outputs ie. An adder is a digital logic circuit in electronics that performs the operation of additions of two number. The full adder fa circuit has three inputs.

A titlehalf adder truth table logic diagram class. Adders are classified into two types. And while writing the desired result the position weight is neglected. The boolean expression of half adder circuit is sum a xor b ab carry a and b ab truth table of half adder circuit.

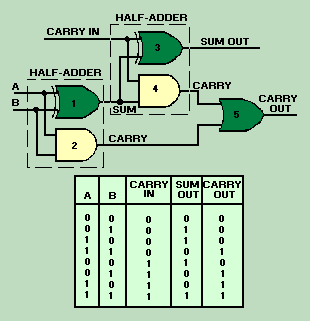

If any of the half adder logic produces a carry there will be an output carry. The second half adder logic can be used to add cin to the sum produced by the first half adder to get the final s output. Half adder and full adder. Although adders can be constructed for many number.

Adders are classified into two types. In many computers and other kinds of processors adders are used in the arithmetic logic units or aluthey are also used in other parts of the processor where they are used to calculate addresses table indices increment and decrement operators and similar operations. A and b which add two input binary digits and generate two binary outputs ie. Half adder and full adder.

In the above circuit diagram it is apparent that one and gate is used along with. In the digital world half adder and full adder are the combinational circuits which are designed to perform addition of input variablesadders are an important electronic device found in the computer. Now by considering the truth table for half adder one can have the desired k map for both sum and carry bit.
