The dw dual technology wall switch sensor combines the wattstoppers dual technology has the flexibility to work in a. Refer to the wiring diagram on the next page for the following procedures. Blue wire from power pack to yellow wire from sensor.
wattstopper occupancy sensor wiring diagram

Wattstopper Dt 355 Electric Supply Inc

A2bed05 Line Voltage Occupancy Sensor Wiring Diagram Wiring Library

Https Www Ideadigitalcontent Com Files 11304 Id Ins V1 Ws Install Fm105 08745r4 Pdf

View and download legrand wattstopper dsw 301 user manual online.

Wattstopper occupancy sensor wiring diagram. The sensor mounts on the ceiling with a flat unobtrusive appearance and provides 360 degrees of coverage. Cu wire onlyattach the sensor to the wall box by inserting screws into the two wide holes on the top and bottom of the attached. The low profile dt 300 dual technology occupancy sensor combines the benefits of passive infrared pir and ultrasonic technologies. Download wattstopper dw 100 wiring diagram.

Match them up. Wattstopper dsw 301 347 wattstopper dsw 302 347 wattstopper dsw 302. When using more sensors than this multiple power packs are required. Be sure that the sensor is not pointing out the door.

Smartset operation the dt 300 turns lighting on when both pir and ultrasonic technologies detect occupancy. The 2 ground wires green and green yellow must be fastened to ground for the sensor to work properly. Wattstopper ultrasonic occupancy sensors with isolated relay. Pir and ultrasonic technologies and can turn lights off and on based on occupancy.

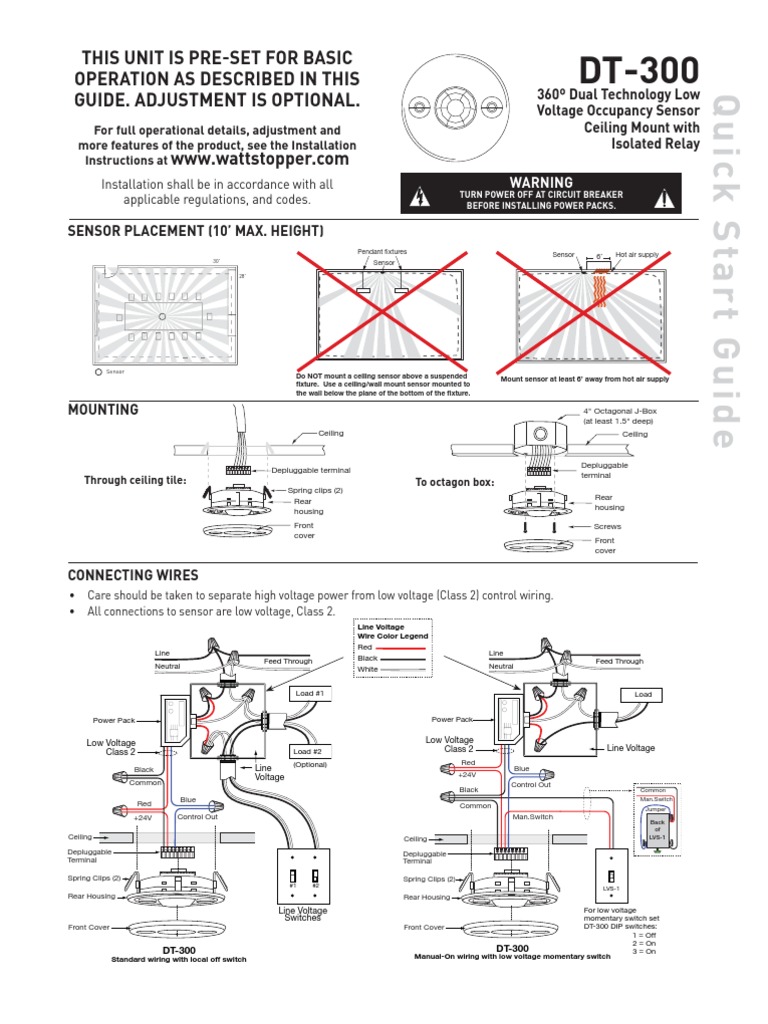

Rotate clockwise ceiling. Wattstopper dw 100 wiring diagram. Wiring diagram that is appropriate to the pw model and. Sensor 36 36 wiring directions each wattstopper bz series power pack can supply power for 6 dt 300 sensors.

Wattstopper dsw 301 accessories pdf manual download. Connect the low voltage. Wattstopper commercial lighting control systems offer a comprehensive solution of industry leading energy efficient lighting controls technology and applications for the commercial space designed to meet code ensure ease of installation and enable the control of natural and artificial light in indoor spaces. Dual technology multi way wall switch occupancy sensor.
